FILTRATION SYSTEMS

GVF Impianti Srl suction and dust-suppression systems are adopted in our several sectors of operation and are studied and sized, in order to create clean working areas, to have emissions compliant with the norms and to keep low management and maintenance costs.

We supply cartridge and sleeves filters, bag filters, panels filters, ring filters, drop stop filters, scrubbers, hydro filters, afterburners.

Furthermore in all systems can be included also cyclonic pre-suppression systems and all the equipment for analysis, control, management and restoration, which are needed or requested.

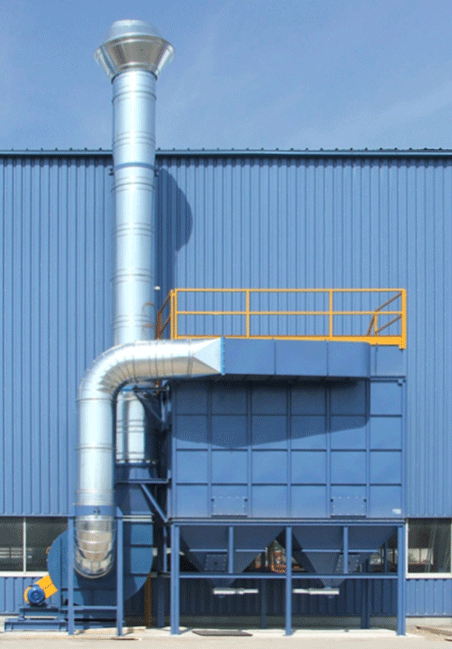

Sleeve Filters

SLEEVE FILTERS

The bag filter FM type provides automatic cleaning through countercurrent compressed air blown into the bags.

This air, due to the Venturi effect causes the shaking and the backwashing of the bags at the same time.

The GVF Impianti’s bag filters are equipped with longitudinal pre-chamber for de-dusting, which guarantees the homogeneous distribution of powder over the entire filter’s length.

The automatic cleaning is managed through an appropriate electrical control unit, which adjusts the compressed air, thanks to a timer or a differential pressure switch.

Suitable for dust suppression

Monolithic construction for high negative pressure values

PED compliant bin

Pulse Jet cleaning system with obstruction control

Capacity from 3.000 to 150.000 mc/h

High performance longitudinal pre-abatement chamber

High temperature version

Atex compliant version

Triboelectric probes to control emissions from chimney

Unloading screw conveyors

Cartridge Filters

CARTRIDGE FILTERS

The bag filter FM type provides automatic cleaning through countercurrent compressed air blown into the bags.

This air, due to the Venturi effect causes the shaking and the backwashing of the bags at the same time.

The GVF Impianti’s bag filters are equipped with longitudinal pre-chamber for de-dusting, which guarantees the homogeneous distribution of powder over the entire filter’s length.

The automatic cleaning is managed through an appropriate electrical control unit, which adjusts the compressed air, thanks to a timer or a differential pressure switch.

Suitable for dust suppression

Monolithic construction for high negative pressure values

PED compliant bin

Pulse Jet cleaning system with obstruction control

Capacity from 3.000 to 150.000 mc/h

High performance longitudinal pre-abatement chamber

High temperature version

Atex compliant version

Triboelectric probes to control emissions from chimney

Unloading screw conveyors

Ring Filters

RING FILTERS



Suitable for oil and fogs abatement

Monolithic construction

Pre-abatement chamber

Filtering rings abatement chamber

Abatement chamber with metal filters

Drop-stop filter CP type in carbon steel

Cyclones and Dedusters

CYCLONES AND DEDUSTERS

The cyclones are advisable as de-dusting dust collectors in industrial processes, where are treated coarse dust particles, chips, saw dust and other types of powders.

They are also used as primary collector for the following filtration.

The powders enter tangentially and acquire in the separator a downwards whirling movement due to the effect of both the weight and the centrifugal force; the clean air exits from on high while the powders are collected in the cone and fall to the lower part of the cyclone.

All our cyclones are supplied complete with Compliance Declaration, CE label and are made respecting the current regulations.

Handles small to large volumes of air at temperatures up to 1.000 °C

Low maintenance

Easiness of powder recovery

Need of small spaces for the system’s installation

Optional construction materials and internal linings to suit the application (e.g. wear-resistant lining for high temperatures)

Atex compliant Low costs of installation and usage

High temperature Handles small to large volumes of air at temperatures up to 1.000 °C
